Selecting the correct caster size and load capacity is critical for smooth movement, safety, and long-term durability. Too small, and casters jam or break; too large, and they’re bulky and hard to install. Over the past 90 days, Google users have been searching intensely for “caster size guide,” “load capacity chart,” and “how many casters do I need,” highlighting confusion around these basic but essential specs.
Step 1: Calculate Total Load Weight
First, find the total weight of your equipment plus its maximum load. Divide this by the number of casters you plan to use (usually 4). Add a 20–30% safety margin to account for uneven weight distribution, shock loads, and wear. For example:
-
-
Cart weight: 200 lbs
-
Max load: 800 lbs
-
Total: 1,000 lbs ÷ 4 casters = 250 lbs per caster
-
With 25% margin: 312.5 lbs per caster → choose 350-lb casters

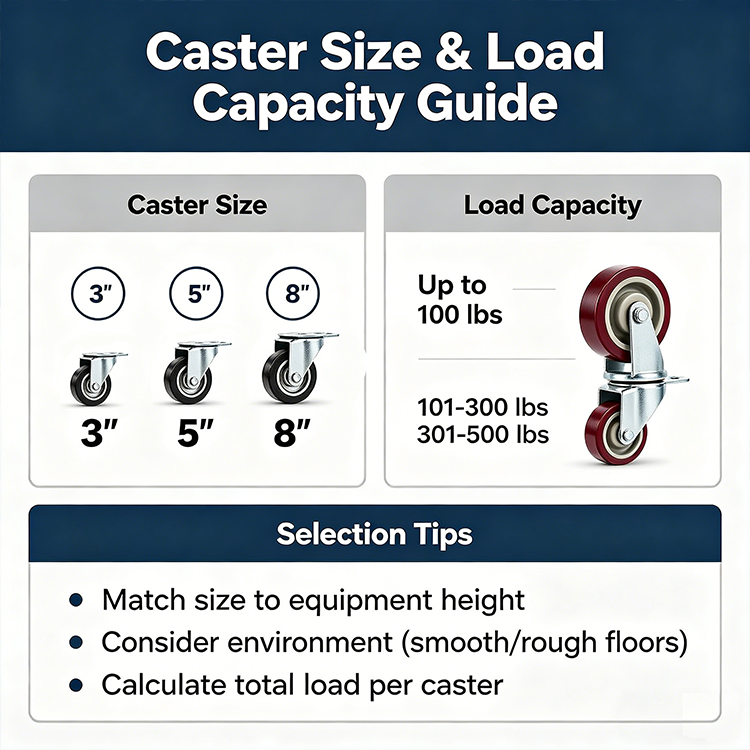

Step 2: Choose Caster Wheel Diameter
Wheel diameter affects ease of rolling, floor protection, and obstacle clearance.
-
2–3 inches: Light-duty (office chairs, small furniture)
-
4–5 inches: Medium-duty (utility carts, hand trucks)
-
6–8 inches: Heavy-duty (warehouse equipment, pallet jacks)
-
10+ inches: Extra-heavy-duty (trailers, industrial machinery)
Larger wheels roll easier over cracks, debris, and uneven floors, but they add height and cost.
Step 3: Select Wheel Material Based on Floor
-
Polyurethane (PU): Best all-around—quiet, durable, protects floors (concrete, tile, wood)
-
Rubber: Quiet, shock-absorbent (hospitals, offices)
-
Nylon: Hard, durable, high heat resistance (industrial, high-traffic)
-
Pneumatic: Air-filled, smooth ride (outdoor, rough terrain)
-
TPR (Thermoplastic Rubber): Non-marking, quiet (retail, healthcare)
Step 4: Consider Mount Type and Brake
-
Plate mount: Most common—4 bolts, stable (industrial, heavy equipment)
-
Stem mount: For furniture, office chairs (screw-in or push-in)
-
Brakes: Essential for safety—dual-lock (swivel + wheel) is most reliable
Final Tips
-
Avoid mixing caster sizes on the same equipment
-
For outdoor use, choose corrosion-resistant materials (stainless steel, coated steel)
-
Replace casters when wheels crack, bearings grind, or movement becomes stiff
By following these steps, you’ll select casters that fit your cart, handle the load, and last for years.
